G-Flex Speciality A2
description

Description

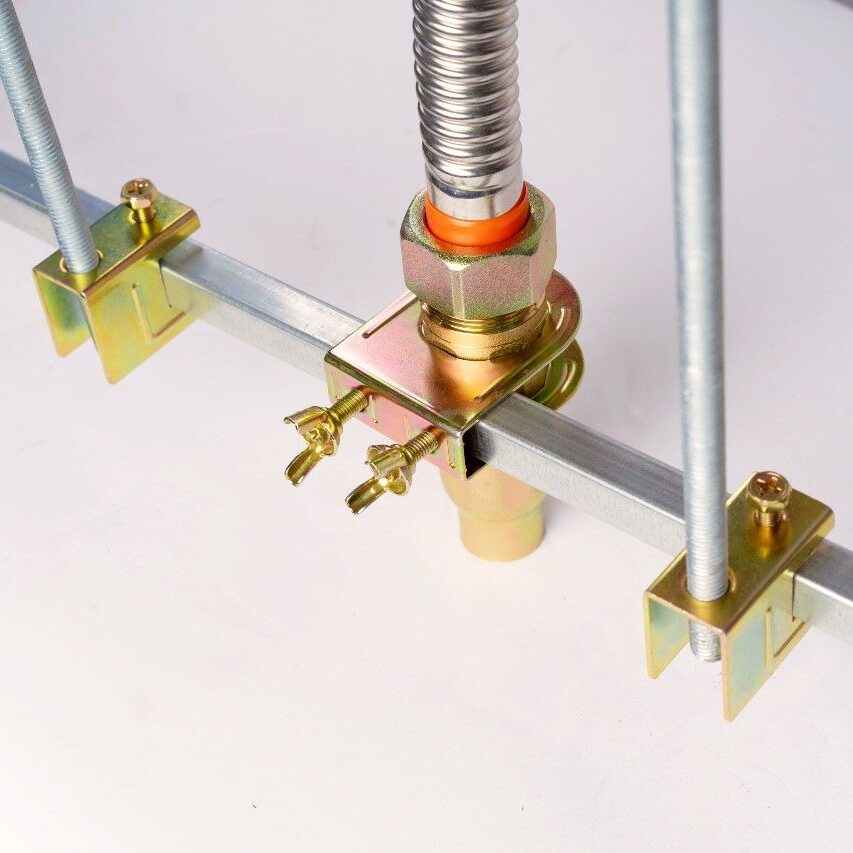

The design is completely similar to the Specialty A1 solution with a special structural middle bracket that secures the sprinkler head. Specialty A2 is different in the ceiling anchor bar, this solution allows users to replace the rod with a square bar.

Using a square bar for anchoring instead of a rod helps the sprinkler head structure to be fixed more firmly and stably, suitable for projects with high requirements for certainty.

Components

Components of the Specialty A2 solution include:

  1. Stainless steel hose
  2. Nut
  3. Nipple
  4. Reducer
  5. Center bracket
  6. Square bar
gflex-header
hinh chon 2 (2)

1. Stainless steel hose

gflex-desc-2

2. Nut

gflex-desc-3

3. Nipple

gflex-desc-4

4. Reducer

hinh chon 2 (2)

5. Center Backet

gflex-desc-3

6. Square Bar

Advantages

Faster and Stronger

Similar to Specialty A1, A2 has a very quick installation method, requiring only a square bar anchored to the ceiling and a center bracket. A square bar instead of a rod helps the structure of the hose system and sprinkler head be tighter.

Simple design

Instead of using 2 rods with a square bar and 2 side brackets, the Specialty A1 requires only a single middle bracket with one rod. With such a simple design, the construction of the flexible sprinkler hose is easier than ever.

Secure hand lock

Specialty A1's special center bracket alone has 3 different installation ways. With a hand-locking structure and a special clamping groove, the sprinkler head is fixed very firmly, there is no movement or looseness.

Technical
data

Unbraided type
Model No.

Rated working pressure (psi)

Max Ambient Temp (°F)Nom Inlet by Outlet Size, (in.)Hose assembly length (mm)Number of bends

Minium bends radius (in.)

Equivalent Length of 1 in. Schedule 40 Steel Pipe (C = 120), ft
G-FLEX 25N-T700      200     225    1x1/2     700     2      4         33
G-FLEX 25N-T1000      200     225    1x1/2     1000     3      4         57
G-FLEX 25N-T1200      200     225    1x1/2     1200      3      4         68
G-FLEX 25N-T1500      200     225    1x1/2     1500      3      4         82
G-FLEX 25N-T1800      200     225    1x1/2     1800      3      4         98
G-FLEX 25N-T700      200     225    1x3/4     700      2      4         38
G-FLEX 25N-T1000      200     225    1x3/4    1000      3      4         62
G-FLEX 25N-T1200      200     225    1x3/4    1200      3      4         73
G-FLEX 25N-T1500      200     225    1x3/4    1500      3      4         89
G-FLEX 25N-T1800      200     225    1x3/4    1800      3      4        104
Braided type

Specification sheet according to UL standard

Model no.

Rated working pressure (psi)

Max Ambient Temp (°F)

Nom Inlet by Outlet Size, (in.)

Hose assembly length (mm)

Number of bends

Minimum bends radius (in.)

Equivalent Length of 1 in. Schedule 40 Steel Pipe (C = 120), ft

G-FLEX 25B-T700

200

225

1x1/2

700

2

4

33

G-FLEX 25B-T1000

200

225

1x1/2

1000

3

4

57

G-FLEX 25B-T1200

200

225

1x1/2

1200

3

4

68

G-FLEX 25B-T1500

200

225

1 x 1/2

1500

3

4

82

G-FLEX 25B-T1800

200

225

1x1/2

1800

3

4

98

G-FLEX 25B-T700

200

225

1x3/4

700

2

4

38

G-FLEX 25B-T1000

200

225

1x3/4

1000

3

4

62

G-FLEX 25B-T1200

200

225

1x3/4

1200

3

4

73

G-FLEX 25B-T1500

200

225

1x3/4

1500

3

4

89

G-FLEX 25B-T1800

200

225

1x3/4

1800

3

4

104

Specification sheet according to FM standard

Model no.

NPT

in.

K-Factor

Minimum bends radius (nn)

Number of bends

Rated working pressure psi (kPa)

Hose assembly length (mm)

Equivalent Length of 1 in. Schedule 40 Steel Pipe (C = 120), ft

G-FLEX 25B-T700

1/2

5.6

230

1

175(1205)

700

26(7.9)

G-FLEX 25B-T1000

1/2

5.6

230

2

175(1205)

1000

46.1(14)

G-FLEX 25B-T1200

1/2

5.6

230

3

175(1205)

1200

59.6(18.1)

G-FLEX 25B-T1500

1/2

5.6

230

3

175(1205)

1500

79.7(24.3)

G-FLEX 25B-T1800

1/2

5.6

230

4

175(1205)

1800

100(30.4)

G-FLEX 25B-T700

3/4

8

230

1

175(1205)

700

23.7(7.2)

G-FLEX 25B-T1000

3/4

8

230

2

175(1205)

1000

44.4(13.5)

G-FLEX 25B-T1200

3/4

8

230

3

175(1205)

1200

58.3(17.7)

G-FLEX 25B-T1500

3/4

8

230

3

175(1205)

1500

79(24)

G-FLEX 25B-T1800

3/4

8

230

4

175(1205)

1800

99.9(30.4)

solution 2

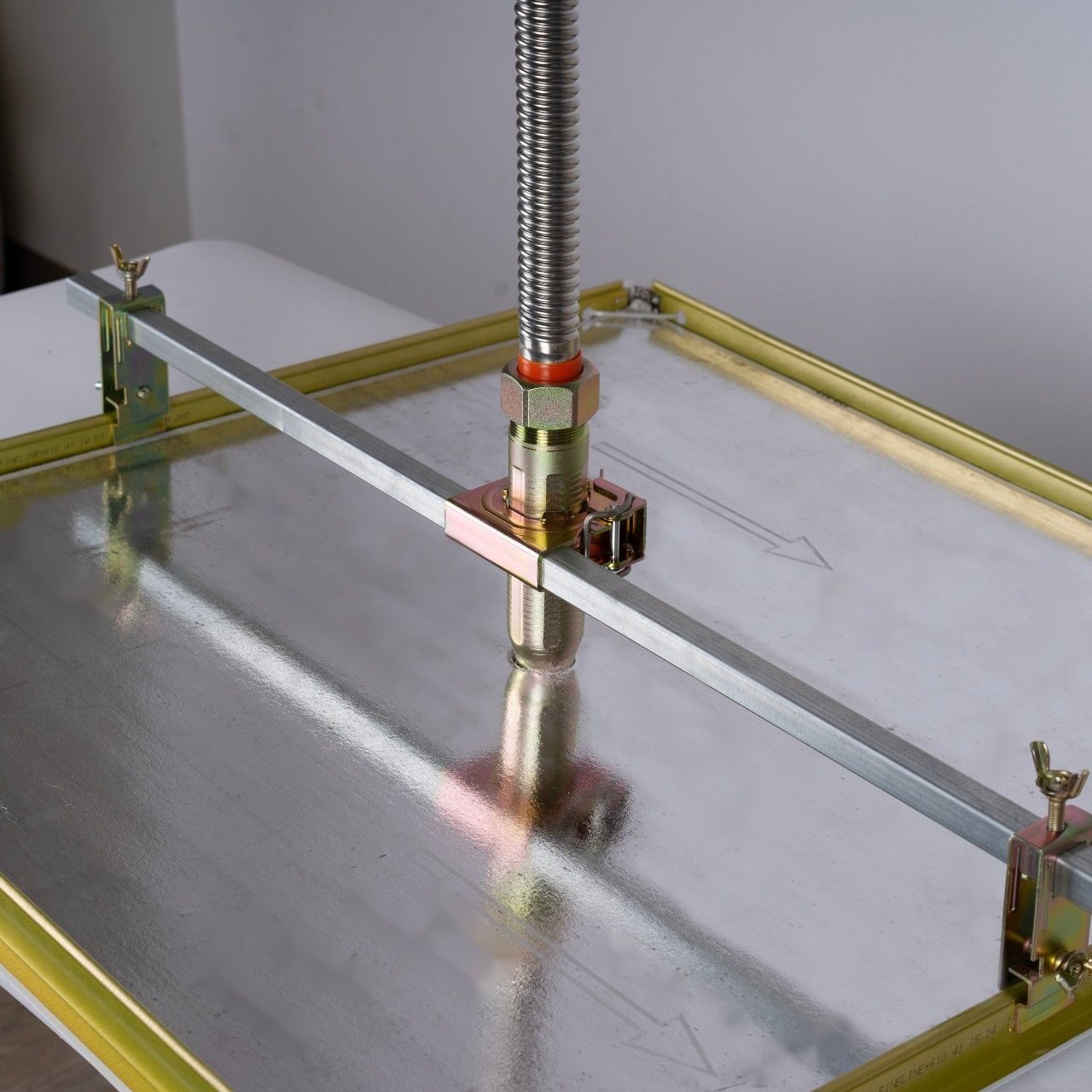

Specialty A2 Installation in laboratory

hinh chon 2 (2)

Specialty A2 Installation in laboratory
