When designing fire protection systems for projects with suspended ceilings (commercial centers, office buildings, apartments), in addition to ensuring the correct design and safety for the whole system, ensuring that sprinkler heads are installed at the correct position is extremely important. This is to ensure the fire protection system works effectively in the event of an incident.
Although commonly used in many different projects, hard pipes bring many difficulties and obstacles for the contractor to ensure that the installation process is carried out correctly and synchronously. With many outstanding advantages compared to hard pipes, the introduction of flexible sprinkler hose is an alternative solution to solve many problems that hard pipes are still facing. With great flexibility, rigorously tested and meet quality standards, quick construction time, flexible sprinkler hose has been used in many countries around the world, including Vietnam.

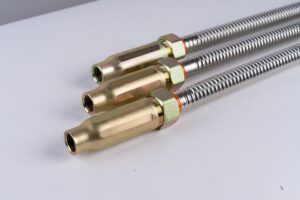

Flexible Sprinkler Hose – G-FLEX
Many incidents have occurred in the past few years, so the requirements of fire prevention and safety are more and more focused. As an integral part of the fire protection system, the quality and safety of the flexible sprinkler hose is a part that many users are always concerned about. Let’s have a look with GS Fire Safety about 5 things to know about this product before using it.
1. Products pass quality inspectionCurrently, in order to strictly control the quality of the flexible sprinkler hose, Vietnam Fire and Rescue Police Department has issued regulations on testing according to strict standards to ensure safety when using in the construction. Therefore, the selection of flexible sprinkler hoses that have been tested by Fire and Rescue Police Department is mandatory and very important.
Besides, two other international standards, UL & FM, are also interested by many contractors when choosing flexible sprinkler hose. UL & FM are 2 standard testing centers located in the US, products labeled UL & FM are recognized for quality all over the world, creating high confidence for contractors and investors.
At the inspection center, the flexible sprinkler hose will undergo a series of strict technical testing procedures. Test criteria include: salt spray test, pressure test, oscillation test, flexibility test and deformation test. In addition, the manufacturing plant will also be evaluated annually to ensure products are consistently manufactured in accordance with standards.
Products that meet the inspection criteria will be labeled for using in the market.
2.Components:
The flexible sprinkler hose includes the following components:
(1) Helical Corrugated Hose (with or without braided)
(2) 2 Nuts
(3) Nipple connector (connect to the branch pipe or water supply)
(4) Reducer (connect to the sprinkler head)
(5) Rubber Gasket prevents water leakage

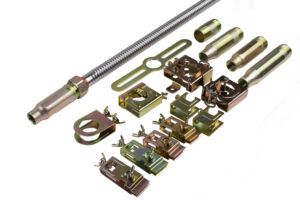

In addition, to connect the flexible sprinkler hose to the fire protection system, it is necessary to have an accompanying set of fittings, such as brackets and hanging bars.
Fittings
3. Materials
According to the standards of the Fire and Rescue Police Department, the components of the flexible sprinkler hose must be manufactured from non-corrosive or anti-corrosion materials. The helical corrugated hose is made of 300 series stainless steel (the most common is 304), the nut and the nipple, the brackets are made of anti-corrosion galvanized steel that meets material testing standards
Flexible pipes manufactured from 304 stainless steel & fittings are anti-corrosion galvanized at least 8mcr thick
4.Quick and simple installation
The flexible sprinkler hose is designed to be easily removed without any specialized tools, so, completing a sprinkler head installation is a lot simpler than the traditional hard pipe solution. At GS Fire Safety, we provide 5 different types of installation solutions to help customers have more choices for each use purpose, helping to optimize costs and functions.
5. Easy maintenance
Manufactured from high-strength, anti-corrosion materials, the flexible sprinkler hoses have a long service life and are durable over time. The product is designed to be flexible to make the maintenance process easy and fast.
Here is some basic information about this kind of product. There are many flexible sprinkler hose suppliers on the market with varying quality, make sure you choose the right tested product. At GS Fire Safety, we are committed to providing our customers with UL&FM tested products along with prompt support. If you are wondering to find a suitable product for your project, please contact us immediately for the best advice.
